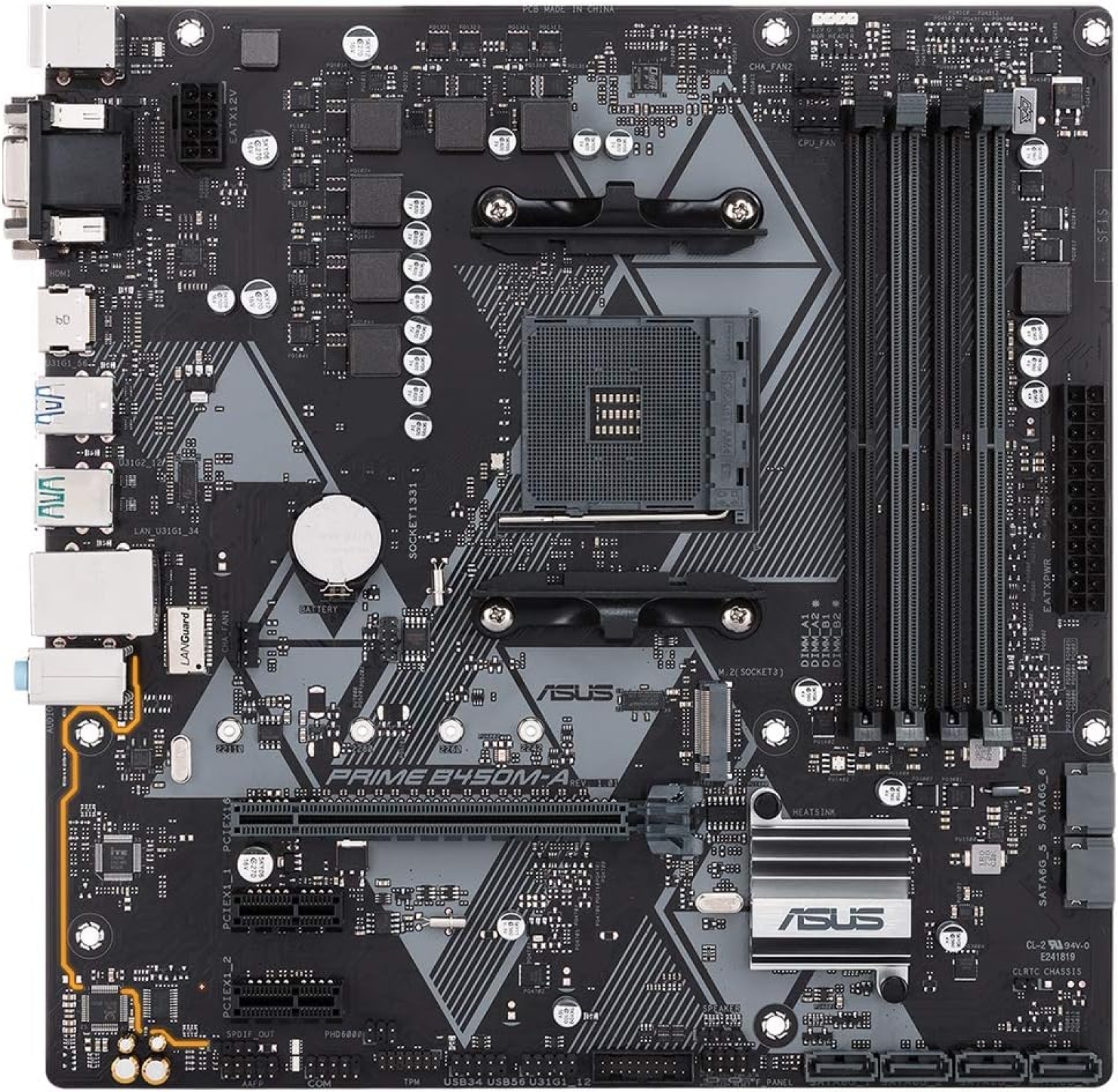

ASUS Prime B450M-A Motherboard Placa Mãe

Item id: 25 | Vendedor: LeBon (0) 0.0% positivo
Ver todos os anúncios do vendedor

Ler as avaliações

Usado

0 vendido

R$ 449.95

1 disponível

Quantidade

Adicionar aos Favoritos

Falar com o Vendedor

Brazil, RS Veranopolis
Compra protegida pelo Programa Shop S-mart
Não especificado
Devolução: Não aceita devolução

AINDA ESTA DISPONIVEL

AMD AM4 suporta Rizen 5

DDR4

Pouco uso, sem caixa original

Acompanha placa traseira

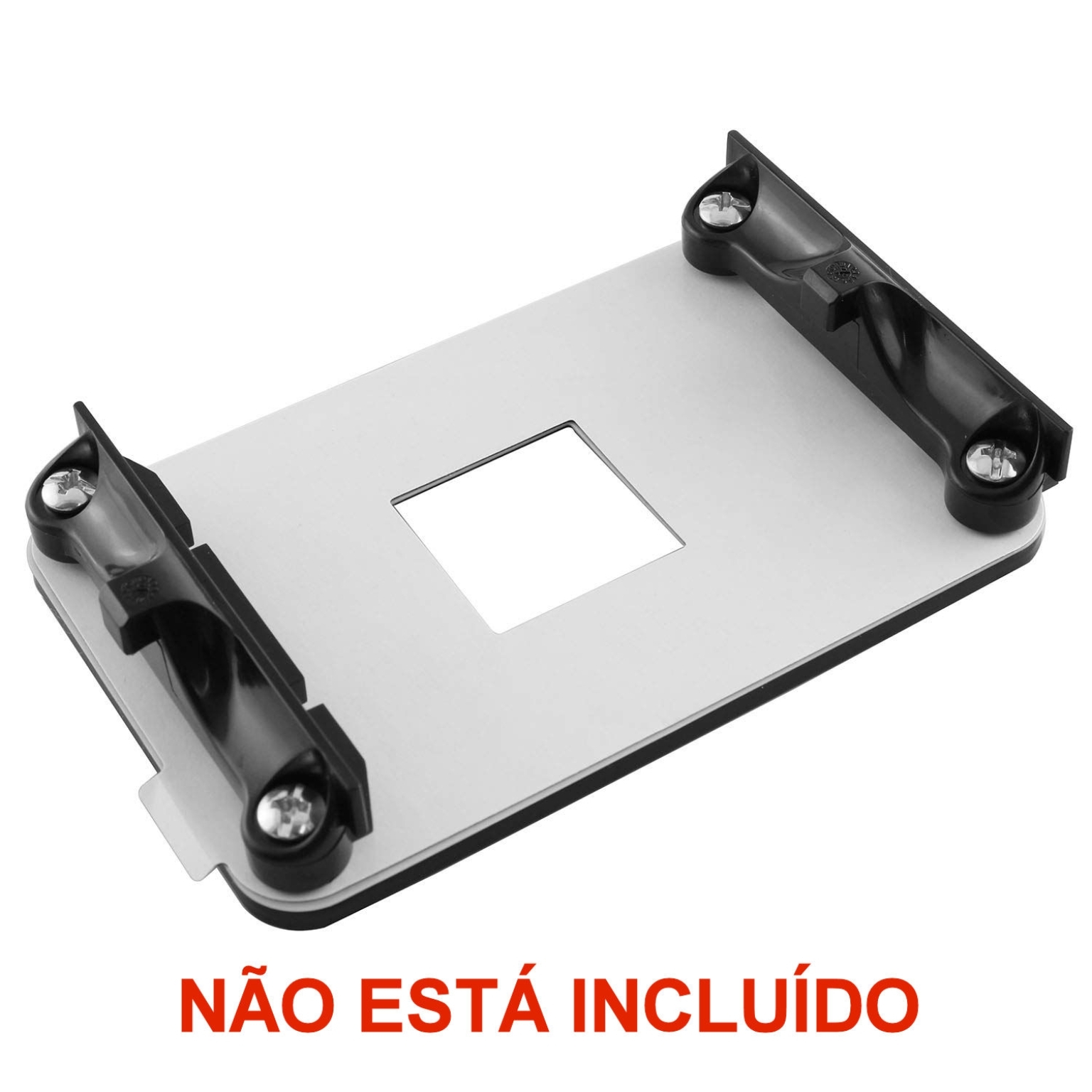

Nao acompanha suporte do cooler nem bateria CMOS

Nao acompanha a rebimboca, nem a parafuseta, nem o elefante, nem o giroscopio, somente o que esta nas fotos

Envio pelo Correio

Model

PRIME B450M-A

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Chipset

AMD B450

Memory

4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory,3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors,Dual Channel Memory Architecture,ECC Memory (ECC mode) support varies by CPU.,* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).,* The maximum memory frequency supported varies by processor.

Graphic

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors,Multi-VGA output support : HDMI/DVI-D/D-Sub ports,- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz,- Supports DVI-D with max. resolution 1920 x 1200 @ 60Hz,- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz

Expansion Slots

3rd/2nd/1st Gen AMD Ryzen™ Processors,1 x PCIe 3.0/2.0 x16 (x8 mode) *1,AMD B450 chipset,1 x PCIe 3.0/2.0 x16 (x16 mode),AMD Athlon™ with Radeon™ Vega Graphics Processors,1 x PCIe 3.0/2.0 x16 (max at x4 mode),2 x PCIe 2.0 x1

Storage

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors : ,3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : ,AMD B450 chipset : ,2 x SATA 6Gb/s port(s),,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*2,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10,AMD Athlon™ with Radeon™ Vega Graphics Processors :

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s),ASUS LAN Guard

Audio

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.,Realtek® ALC8878-Channel High Definition Audio CODEC,Audio Feature :,- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference,- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals,- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity,* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :,2 x USB 3.1 Gen 2 port(s) (2 at back panel, ),AMD B450 chipset :,4 x USB 2.0/1.1 port(s) (4 at mid-board),4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue),2 x USB 3.1 Gen 1 port(s) (2 at mid-board)

Special Features

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage,- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!,- ASUS Overvoltage Protection: World-class circuit-protecting power design,- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!,- ASUS DIGI+ VRM: Premium components provide better power efficiency,ASUS Exclusive Features :,- AI Suite 3,- Ai Charger,ASUS Quiet Thermal Solution :,- Stylish Fanless Design Heat-sink solution,- ASUS Fan Xpert 2+,ASUS EZ DIY :,- ASUS CrashFree BIOS 3,- ASUS EZ Flash 3,- ASUS UEFI BIOS EZ Mode,- Multi-language BIOS,ASUS Q-Design :,- ASUS Q-Slot,- ASUS Q-DIMM

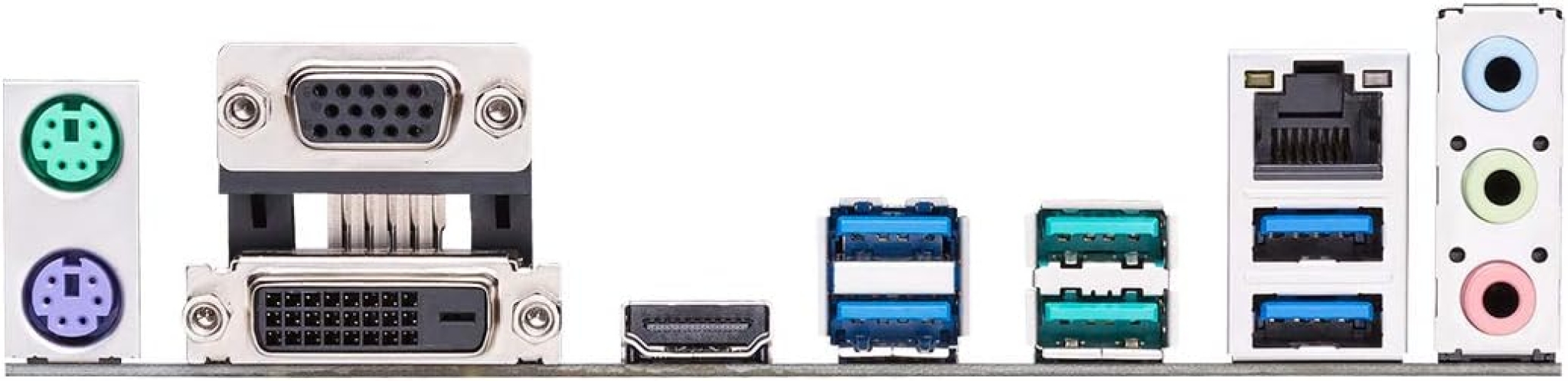

Back I/O Ports

2 x USB 3.1 Gen 2,4 x USB 3.1 Gen 1,1 x PS/2 keyboard (purple),1 x PS/2 mouse (green),1 x DVI-D,1 x D-Sub,1 x HDMI,1 x LAN (RJ45) port(s),3 x Audio jack(s)

Internal I/O Ports

1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),2 x Chassis Fan connector(s) (2 x 4-pin),1 x Aura RGB Strip Header,1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x TPM header,1 x COM port(s) connector(s),6 x SATA 6Gb/s connector(s),1 x CPU Fan connector(s) (1 x 4-pin),1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x 8-pin ATX 12V Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x System panel(s),1 x Clear CMOS jumper(s),1 x Speaker connector

Accessories

2 x SATA 6Gb/s cable(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x M.2 Screw Package,1 x Supporting DVD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Operating System

Windows® 7 64-bit *3,Windows® 10 64-bit

Form Factor

9.6 inch x 9.5 inch ( 24.4 cm x 24 cm ),mATX Form Factor
