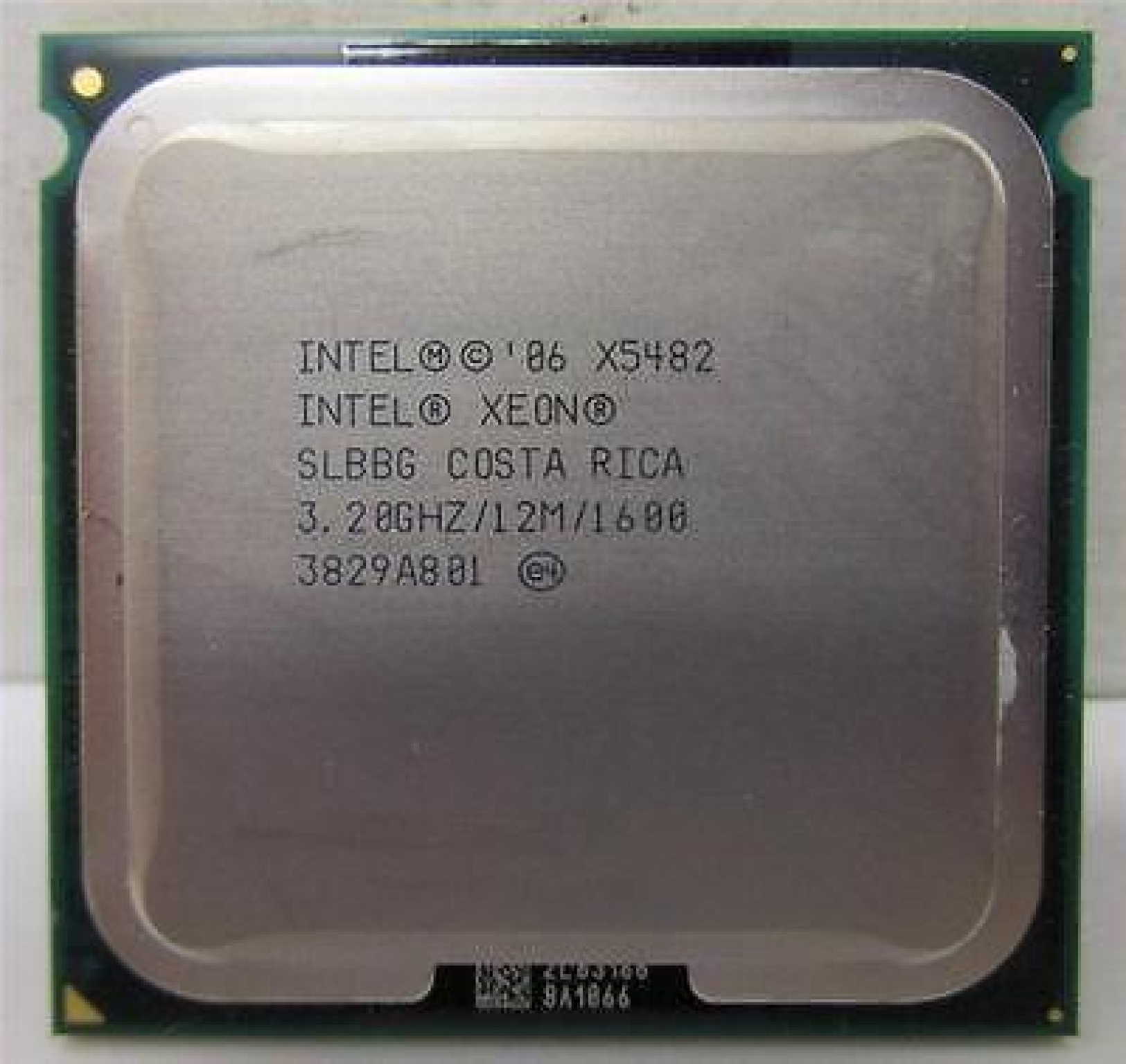

Processador Intel Xeon X5482 3.2GHz Quad-Core LGA775

Item id: 159 | Vendedor: LeBon (0) 0.0% positivo
Ver todos os anúncios do vendedor

R$ 600.00

1 disponível

Quantidade

Adicionar aos Favoritos

Falar com o Vendedor

Processador DDR2, pronto para placas LGA775

Nao requer adaptacao

General information
Type	CPU / Microprocessor
Market segment	Server
Family	Intel Xeon 5400
Model number ?	X5482
CPU part number	EU80574KL088N is an OEM/tray microprocessor
Frequency ?	3200 MHz
Bus speed ?	1600 MHz
Clock multiplier ?	8
Package	771-land Flip-Chip Land Grid Array (FC-LGA) 1.48" x 1.48" (3.75 cm x 3.75 cm)
Socket	Socket 775 / LGA775
Introduction date	Nov 12, 2007

Architecture / Microarchitecture
Microarchitecture	Core
Platform	Bensley Bensley-VS Cranberry Lake Stoakley
Processor core ?	Harpertown
Core stepping ?	C0 (Q9UF, SLANZ)
CPUIDs	676 (Q9UF) 10676 (SLANZ)
Manufacturing process	0.045 micron 820 million transistors
Die size	214mm²
Data width	64 bit
The number of CPU cores	4
The number of threads	4
Floating Point Unit	Integrated
Level 1 cache size ?	4 x 32 KB 8-way set associative instruction caches 4 x 32 KB 8-way set associative write-back data caches
Level 2 cache size ?	2 x 6 MB 24-way set associative shared caches
Multiprocessing	Up to 2 processors
Features	MMX instructions SSE / Streaming SIMD Extensions SSE2 / Streaming SIMD Extensions 2 SSE3 / Streaming SIMD Extensions 3 SSSE3 / Supplemental Streaming SIMD Extensions 3 SSE4.1 / Streaming SIMD Extensions 4.1 ? EM64T / Extended Memory 64 technology / Intel 64 ? NX / XD / Execute disable bit ? VT-x / Virtualization technology ?
Low power features	HALT state Extended HALT state Stop Grant state ? Enhanced SpeedStep technology ?
Integrated peripherals / components
Integrated graphics	None
Electrical / Thermal parameters
V core ?	0.85V - 1.35V
Minimum/Maximum operating temperature ?	5°C - 63°C
Maximum power dissipation ?	182.8 Watt 162.81 Watt (sustained)
Thermal Design Power ?	150 Watt
Notes on Intel Xeon X5482
Bus frequency is 400 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 1600 MHz
